Documentation

User guide

0. Installation

MorennBridge is a Blender extension (Blender 4.2 or newer).

1. Get morennbridge-<version>.zip from the releases page, or build it yourself from a checkout with blender --command extension build --source-dir . --output-dir dist.
2. Open Edit → Preferences → Get Extensions. Click the ⌄ button at the top right of the page and choose Install from Disk…, then pick the zip. No internet access is needed for this; if Blender asks about online access you can choose Continue Offline.
3. The extension is enabled right away and listed under Installed. It stays enabled across sessions once you save the preferences (Blender does this automatically unless auto-save is off).

Developers can skip the zip and symlink the morennbridge folder into <Blender config>/extensions/user_default/morennbridge instead (the test runner does exactly that).

To uninstall, open the same page, expand MorennBridge under Installed and use Uninstall.

The sidebar tab

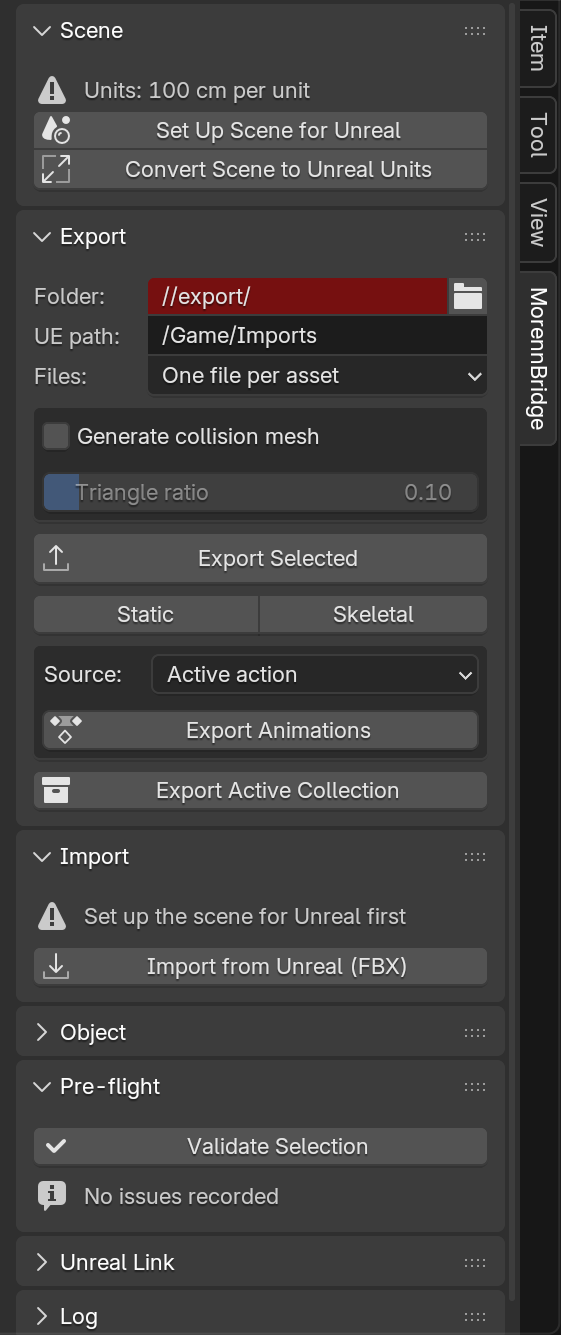

Everything lives in the MorennBridge tab of the 3D Viewport sidebar (press N). Panels, top to bottom: Scene, Export, Import, Object, Armature, Pre-flight, Unreal Link, Log.

1. Set the scene up for Unreal

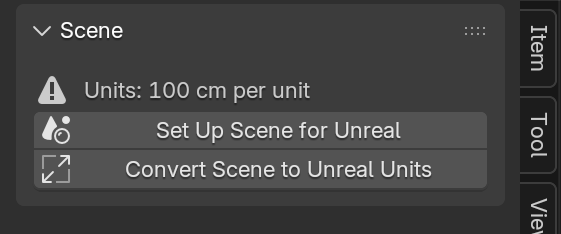

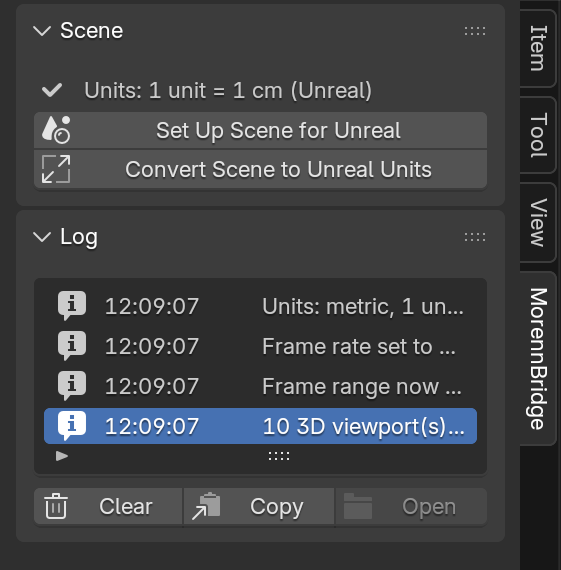

Unreal works in centimetres. Blender's default scene uses metres, which is what makes imported characters tiny, armatures scaled by 100 and viewport clipping odd. The Scene panel shows the current state and offers two buttons.

• Set Up Scene for Unreal sets metric units with 1 unit = 1 cm, 30 fps, a frame range starting at 0, and a clip range / grid scale suited to centimetres on every 3D viewport and camera. It changes settings only, never your geometry.
• Convert Scene to Unreal Units is for a scene that was built in metres: every length is multiplied by 100 (meshes, curves, armatures, locations, location keyframes, common modifier settings, cameras, lights) and then the units are switched, so everything keeps its physical size. Linked data cannot be converted and is reported.

Both report what they did in the Log panel.

All values (clip range, fps, grid) are preferences: Edit → Preferences → Add-ons → MorennBridge.

2. Export static meshes

Select the objects and press Export Selected (or Static to force the type). Each selected mesh becomes one SM_<Name>.fbx in the export folder, with its satellites:

Settings in the panel: the export folder, the Unreal content path written into the manifest, Files (one FBX per asset, or one combined file whose nodes become separately named assets), and the triangle ratio of the generated collision mesh (0.1 keeps 10 % of the triangles; tiny meshes fall back to an undecimated copy).

What happens on export, so you do not have to think about it:

• names are normalised (Crate.001 → SM_Crate, an existing SM_ prefix is not doubled; set Name in the Object panel to override), characters Unreal would rewrite are replaced;
• the mesh is evaluated with its modifiers, triangulated, written at the origin with rotation and scale applied, with smoothing groups, custom normals, tangents, UVs and vertex colours;
• the file is in Unreal's axis system and in centimetres, so Unreal rotates and scales nothing; a Blender object facing −Y (visible in Front view) faces +Y in Unreal, the same orientation as Epic's mannequins;
• a <batch>.morenn.json manifest next to the files records what was written and how Unreal should import it.

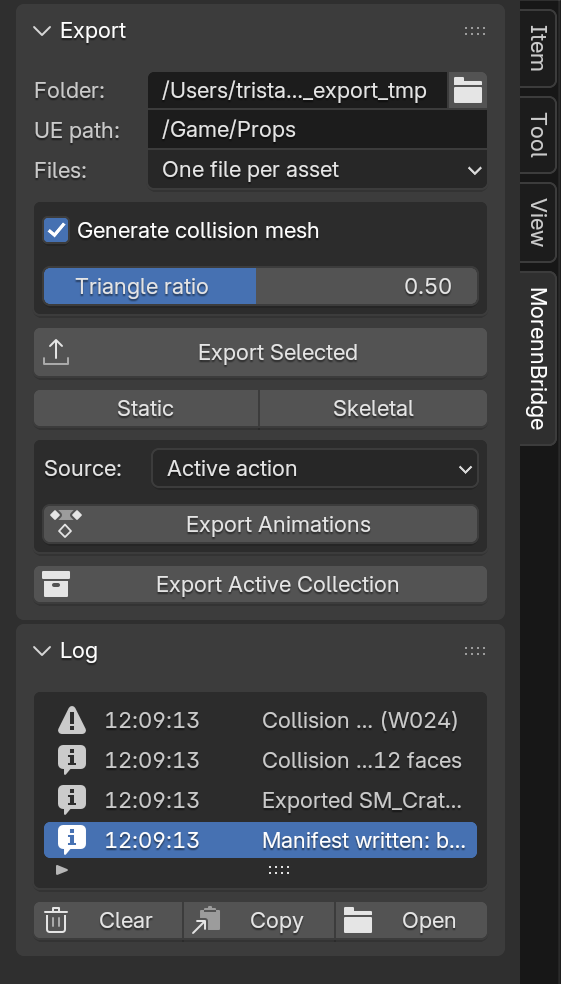

The Log panel lists each file (double-click opens the folder); the Object panel holds per-object overrides: export name, Unreal destination path, role, LOD index and parent, collision type, and buttons that create convention objects (socket, box/convex/sphere/capsule collision, LOD chain) for the active mesh.

3. Export skeletal meshes and animations

Select the armature (or any mesh skinned to it) and press Export Selected or Skeletal. The armature and all meshes skinned to it become one SKM_<Name>.fbx. Rules that make Unreal happy are enforced for you:

• a single root bone (the pre-flight check offers to add one); the armature object must not be animated: root motion belongs on the root bone;
• exported bones are the deform bones, bones tagged Always export (Armature panel), ik_* and SOCKET_* bones, and their ancestors; weights on other bones are merged into the nearest exported ancestor; at most eight influences per vertex (preference);
• shape keys survive modifiers, morph targets are exported;
• bones are written with the X axis along the bone (Unreal/Maya convention) for Blender-made rigs; rigs imported from Unreal keep their original convention bone by bone, so re-exports match the Unreal skeleton exactly;
• the temporary Armature node Blender normally adds above the root bone is removed from the file, so the root bone is the real root in Unreal and no extra bone appears.

Export Animations writes one FBX per animation, named A_<Rig>_<Action>. The Source dropdown chooses the active action, every action of the rig, each NLA strip, or the scene frame range. The pose is baked visually, so constraints, drivers and NLA blending are included, every frame gets a key, and the file carries only the skeleton (the mesh is optional, preference Include mesh in animation files). In Unreal, import these onto the Skeleton created by the matching SKM_ import.

4. Pre-flight validation

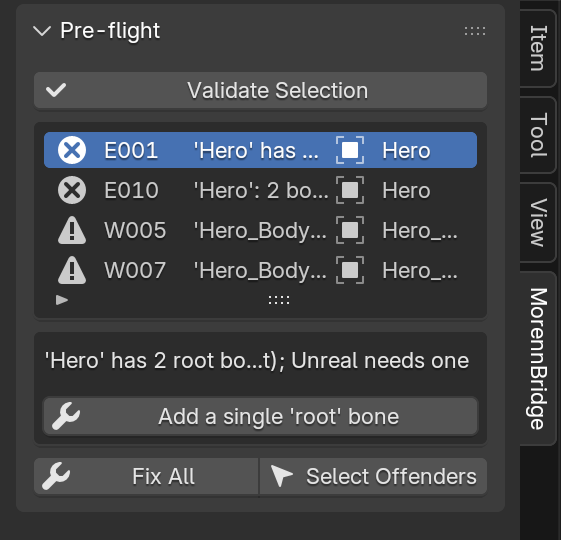

Validate Selection (also run automatically by every export) lists problems with a code, a severity and, when possible, a one-click fix. Errors block the export; warnings do not.

Typical items: E001 several root bones (fix: add root), E003 mirrored scale (fix: apply), E010 bone names Unreal would rewrite such as spine.001 (fix: rename them the way Unreal would, so names match on both sides), E004 prop parented to a bone without skinning (fix: rigid bind), W005 missing UV map, W007 empty material slot (fix: assign M_Default), W016 scene not in centimetres (fix: set up scene), I009 too many bone influences. Fix All applies every available fix; Select Offenders selects the objects involved.

5. Import from Unreal

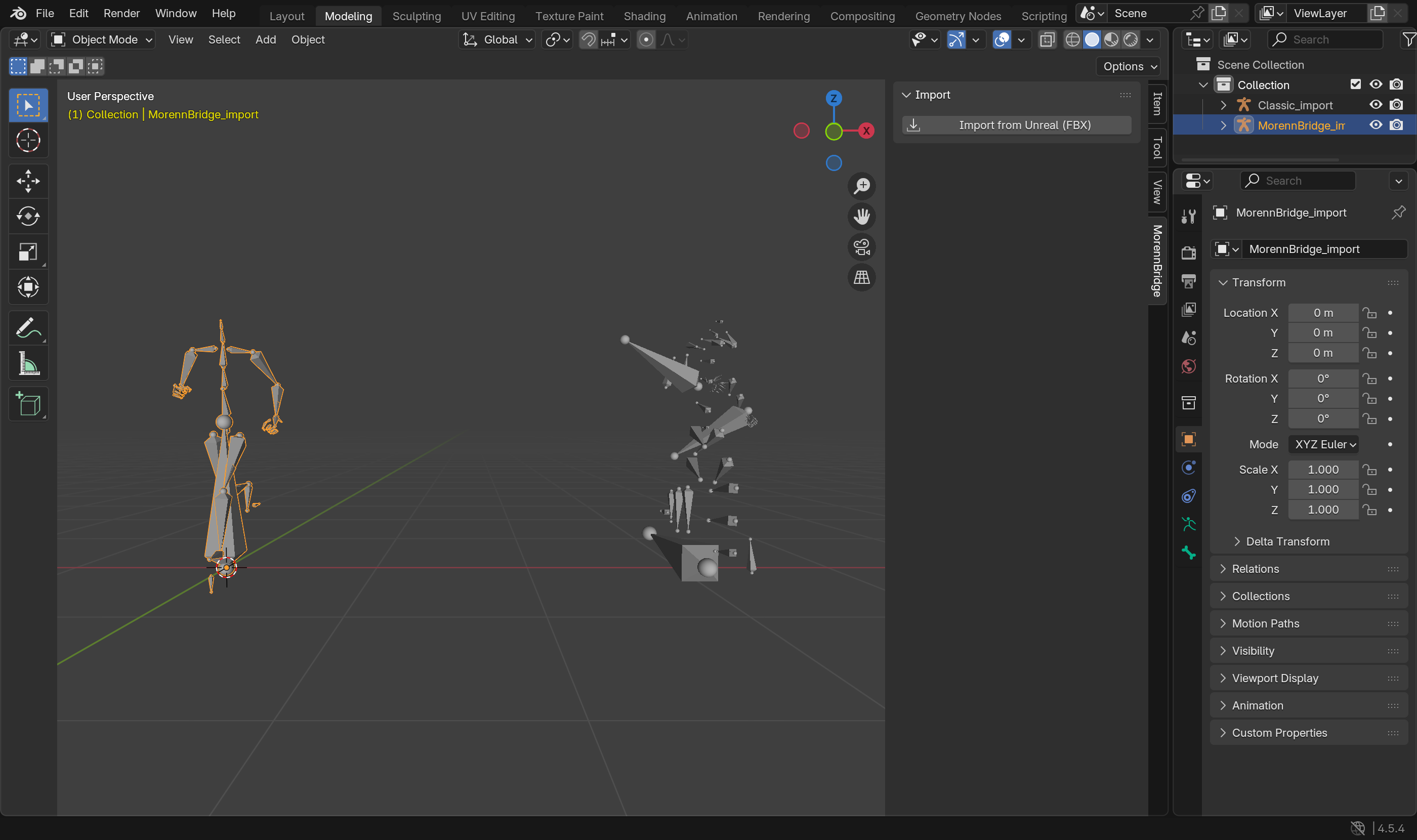

Import → Import from Unreal (FBX) accepts one or several files exported by Unreal (static meshes, skeletal meshes, animations). Compared with Blender's stock importer:

• the root bone is a real bone again (the stock importer turns Unreal's root node into the armature object);
• every bone is re-oriented so that it points to its child, bone by bone: Unreal skeletons are not uniform (UE4 and ALS mannequins use the opposite axis on the right arm and the left leg, the root points up, feet point forward); the change is exact, so animations and re-exports stay correct;
• bones get sensible lengths (toward the farthest aligned child; twist and IK helpers short), collections Deform / IK / Helpers, and the per-bone axis is stored and shown in the Armature panel;
• the armature is named after the asset, meshes <Asset>_Mesh, UCX_ meshes become wire collision objects parented to their mesh, Unreal LOD groups become LOD chains, the action is renamed after the file;
• data arrives in centimetres; a metre scene is rescaled automatically (the panel suggests running the scene setup first).

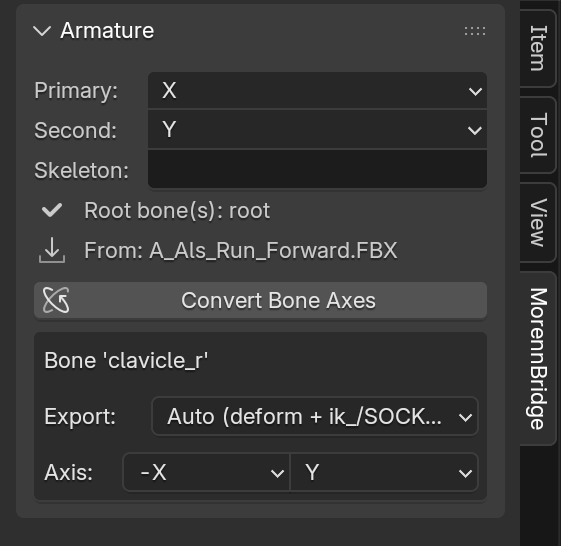

Options on the import dialog: Convert bone axes, Tidy hierarchy, Reset pose. The Armature panel lets you flip the convention of a whole rig later (Convert Bone Axes) and override the axis of a single bone.

6. Unreal Link (push and pull)

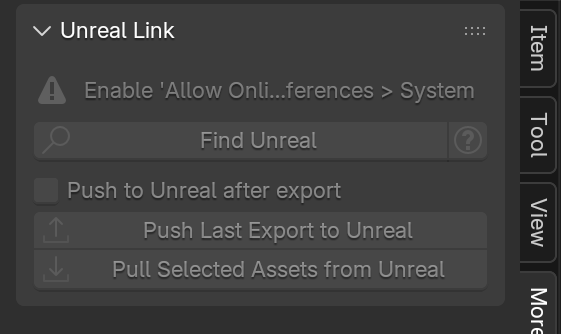

With Python remote execution enabled in the Unreal project (UE_SETUP.md, two settings), Find Unreal lists the running editors. Push Last Export to Unreal imports the last manifest with the correct Interchange (or legacy) settings, renames the skeleton and physics asset with your prefixes, links the generated collision mesh as Complex Collision Mesh and saves. Pull Selected Assets from Unreal exports the assets selected in Unreal's Content Browser and imports them here. Blender's Allow Online Access preference must be on.

This part has not been run against a live editor yet. Property names on the Unreal side that do not exist in a given engine version are skipped and logged.

7. Preferences

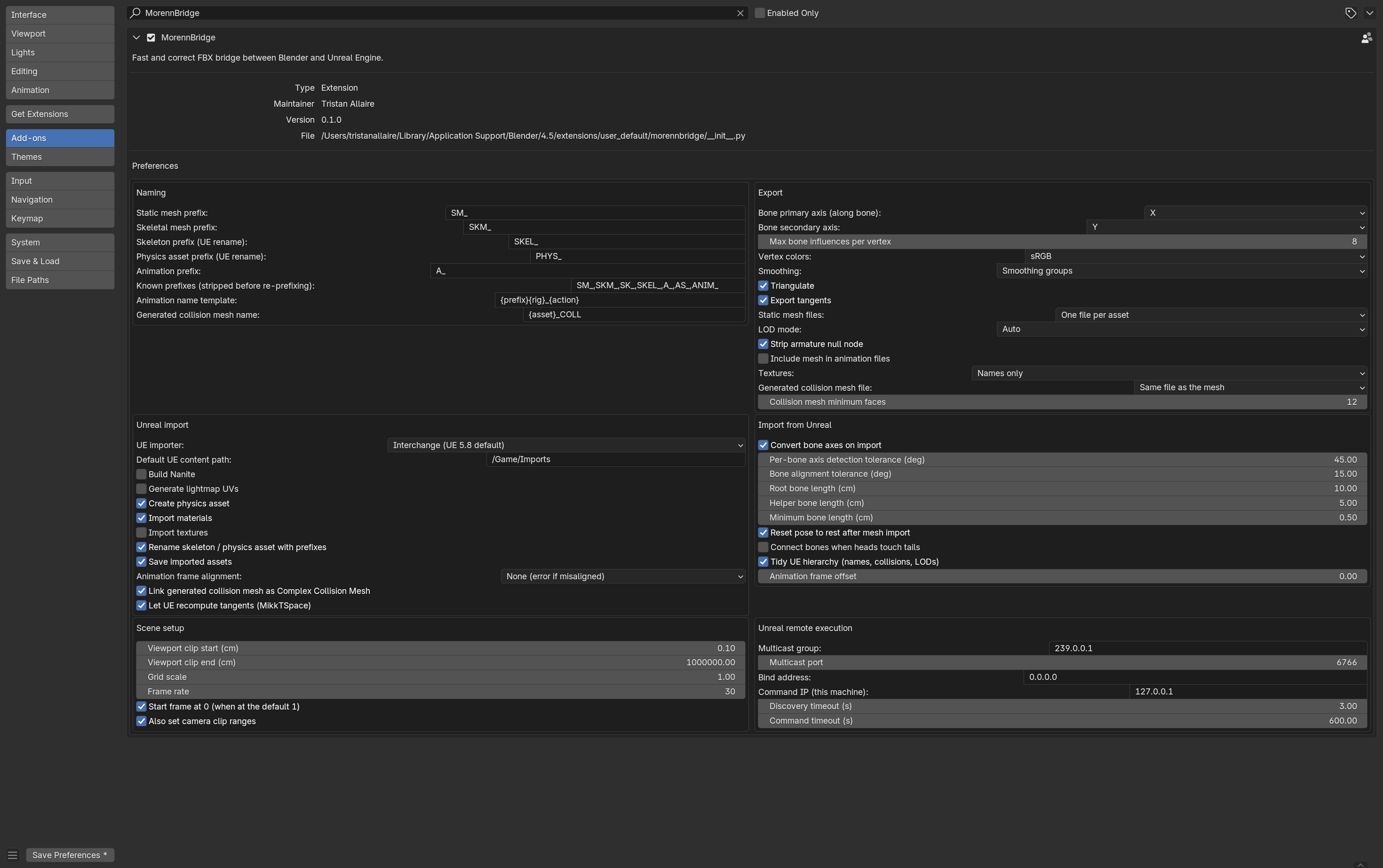

Edit → Preferences → Add-ons → MorennBridge (expand the entry). Everything the buttons do is driven by these settings; the defaults are what the rest of this guide describes.

Per-object and per-armature overrides live in the Object and Armature panels, not in the preferences.

8. Checking the result in Unreal

Until the push feature is confirmed, import manually with the settings listed in CONVENTIONS.md, then check:

1. a combined file gives one asset per node with the right names, SM_x and SM_x_COLL from one file;
2. LOD chains and collision pieces bind to the right mesh;
3. skeletal meshes have a single root bone, no Armature bone, bones at scale 1, the reference pose equal to the Blender rest pose; a re-exported Unreal character round-trips;
4. animations have the right length at 30 and 24 fps and play on the original Unreal skeleton;
5. morph targets, vertex colours (sRGB by default) and the complex collision mesh behave as expected.
